MOSCOW STATE UNIVERSITY, INSTITUTE OF NUCLEAR PHYSICS

CENTRE FOR PHOTONUCLEAR EXPERIMENTS DATA

CDFE: Online Services > Search Engine for Chart of Giant Dipole Resonanse Main Parameters

ONLINE SERVICES. SEARCH ENGINE FOR CHART OF GIANT DIPOLE RESONANSE MAIN PARAMETERS.
Each field in this form is optional - may be blank.

[Click here for help...]

Advanced Search:
Examples

Exfor number :   m0001027  |  l0044005

Z : 12  |  10;20  |  7-82

A : 16  |  13;24;98  |  4-65

Reaction : G,ABS  |  G,N;G,P  |  G,N;G,T

Maximum Energy
(MeV) : 12.54  |  15-24.78

Maximum Cross Section Value
(mb) : 10  |  4.90-9

Full Wight at Half Maximum
(MeV) :   3.1  |  5-10.09

Integrtion Energy Limit
(MeV) :   2.2  |  4-11.46

Integrated cross section
(MeV * mb) :      4.3  |  3.21-6.29

First Momentum of Integrated Cross Section
(mb) :      8.4  |  6.11-9.37

Reference/Year : PHYS.REV.,C4,149  |  NUCL.PHYS  |  1971

NSR Keyno : 1985AH06  |  1995VA21

First Author : FULLER

Number of founded results on the page :

[ Online Services | Partners | About | Team | Publications | Contacts | Hot Events ]

If you have any questions, comments, and/or suggestions, please, contact
CDFE Head: Vladimir V. Varlamov
©Webdesign by S.U.Komarov, I.A.Ekhlakov 2009.

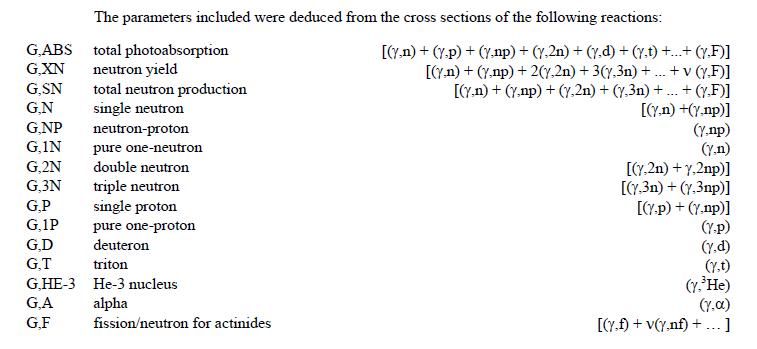

Reaction types

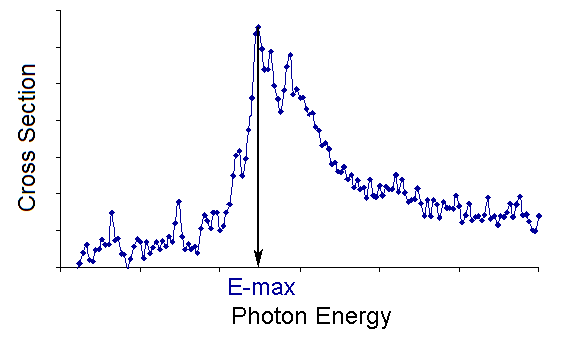

E-max

E-max
E-max is energy at which is reached a maximum of cross section of Giant Dipole Resonanse .

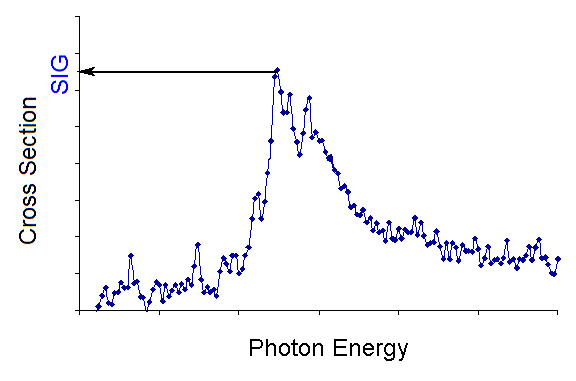

SIG

Maximum cross section

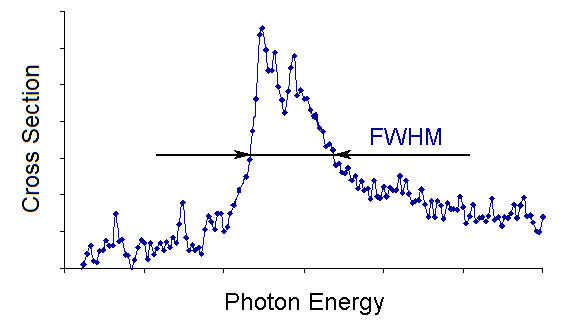

FWHM

FWHM - full width at half maximum

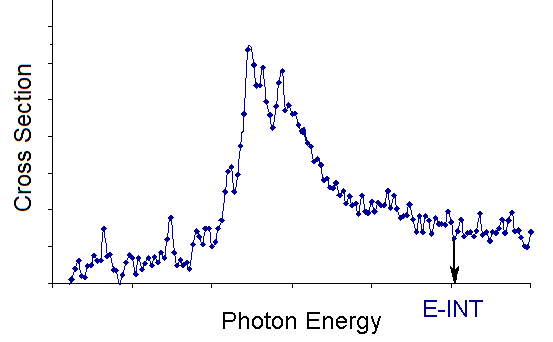

E-INT

E-INT - Integration Energy Limit - is the top energy limit of Giant Dipole Sesonanse

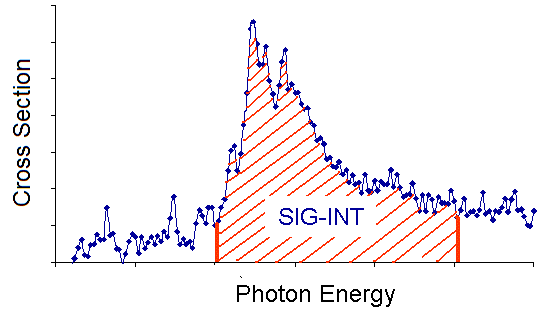

SIG-INT

Intrgrated cross section

where E_th is reaction threshold and k is photon energy, and E-INT is the top limit of energy of Giant Dipole Resonanse

SIG-INT-1

First moment of intrgrated cross section

where E_th is reaction threshold and k is photon energy, and E-INT is the top limit of energy of Giant Dipole Resonanse
